robotics
We now also use robots in our production process to process short and long strands between 0.14 and 10 mm².
Cut to length, strip insulation, attach contacts, attach ferrules, attach ring cable lugs, seal or tin. Each page can be edited differently.
Furthermore, the robots pick and place tasks for us and can also pick up bulk goods and palletize them accordingly.
Our modules:
The individual modules can be combined and integrated as required.
Examples:

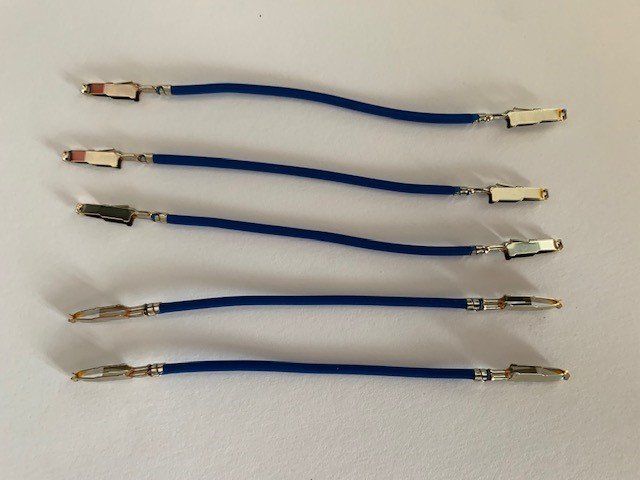

Cutting with the Autocut, stripping and attaching a contact on both sides.

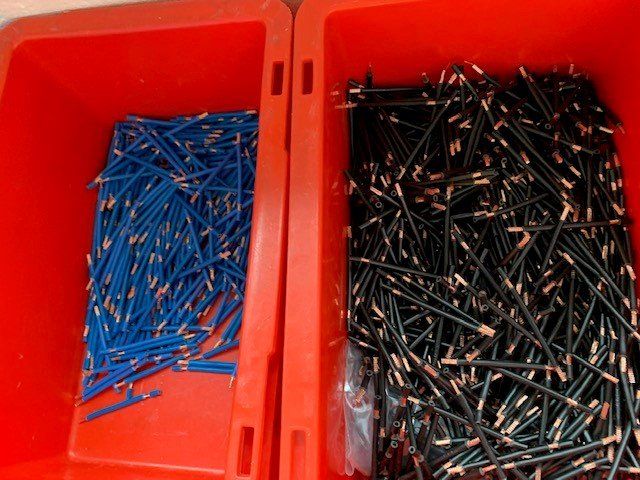

Cutting with the Autocut, stripping and sealing on both sides.

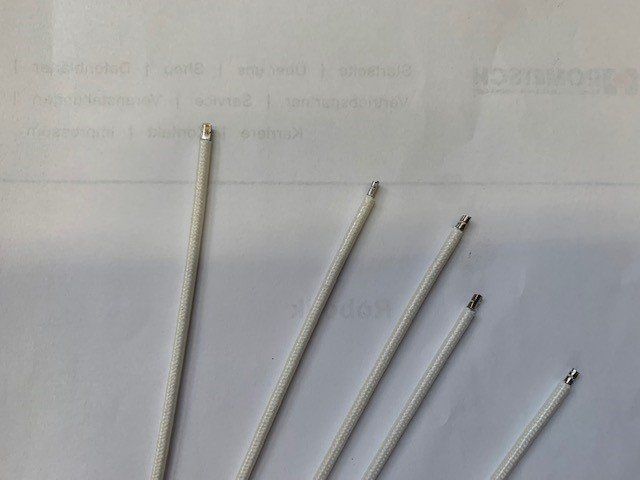

Cutting, stripping with the Isomat and crimping (3 chambers), strand length 0.30 meters.
Cutting with the Autocut, stripping 8 mm of insulation, attaching the ferrule (total length 70 mm).

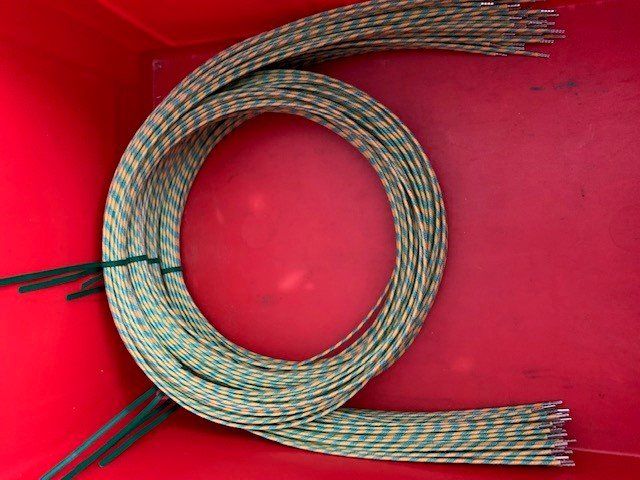

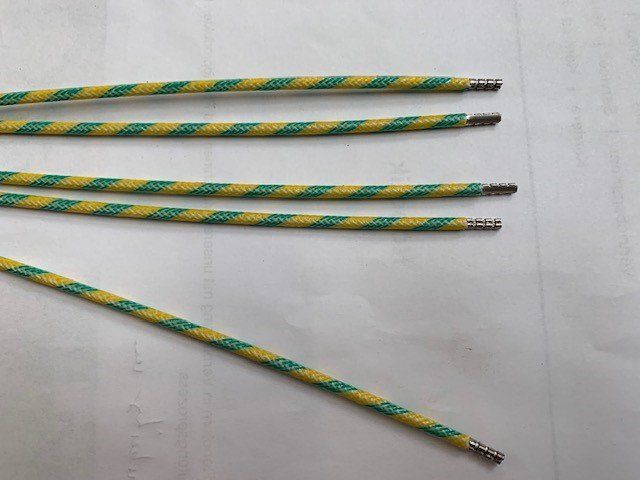

Cutting, stripping with the Isomat and crimping (3 chambers), wire length 1.80 meters.

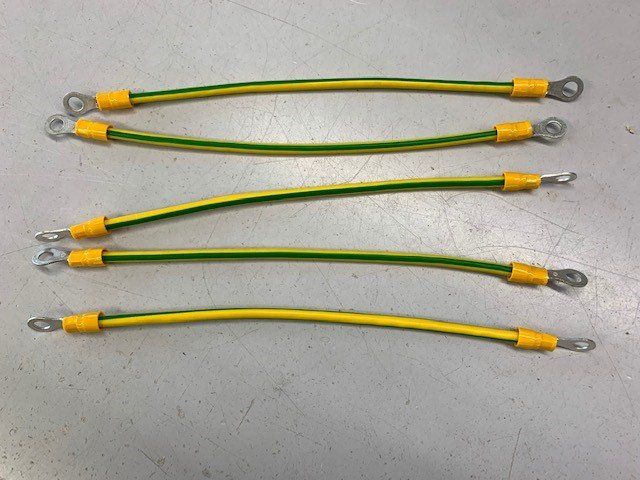

Cutting with the Autocut, stripping and attaching a ring cable lug on both sides.

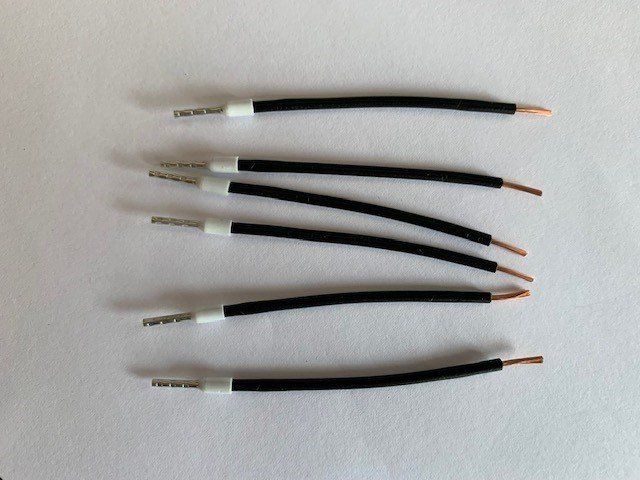

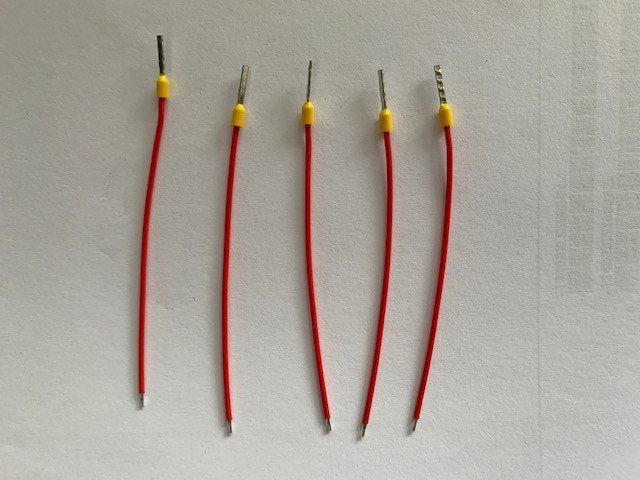

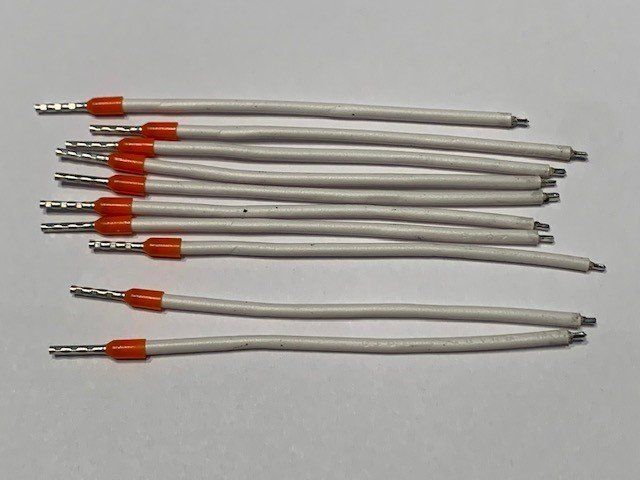

Cutting with the Autocut, stripping, attaching the ferrule and tinning the other side.
Cutting, stripping with the Isomat and crimping (2 chambers), wire length 0.30 meters.
Cutting, stripping and tinning as well as attaching ferrules.

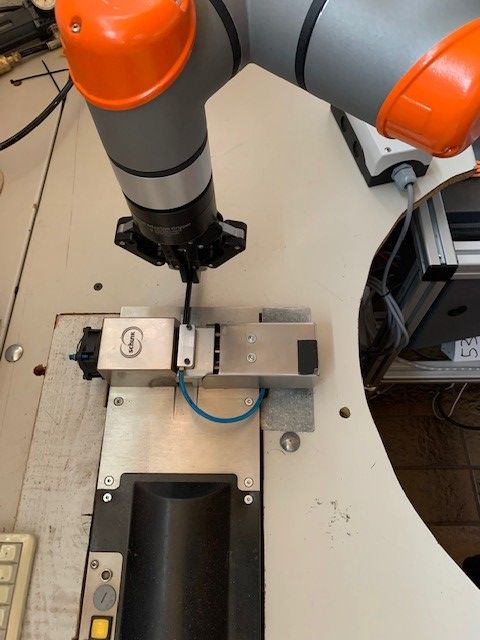

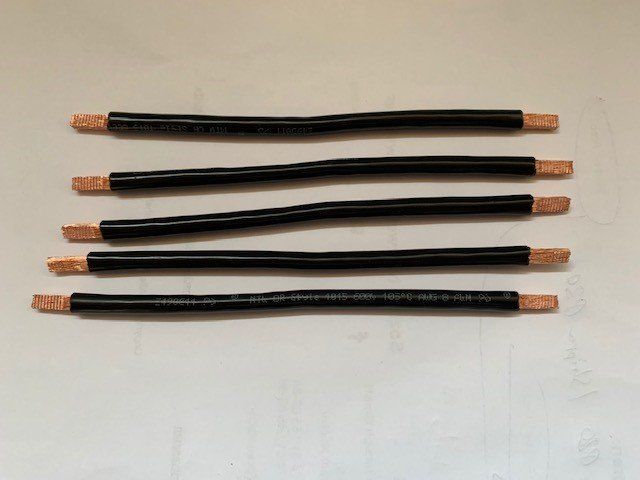

Cut with the Autocut, strip and compress on one side.
YouTube videos of our robot islands:

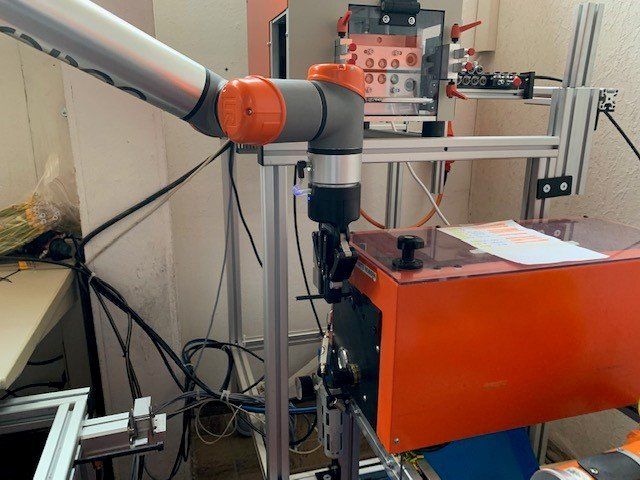

- Use of a robot arm in connection with an Isomat & crimping machine
- Our first robot island in cooperation with the Autocut. Cutting, stripping and attaching a ring cable lug on both sides.
- Cutting, stripping with the Isomat and crimping (3 chambers) in cooperation with a robotic arm.

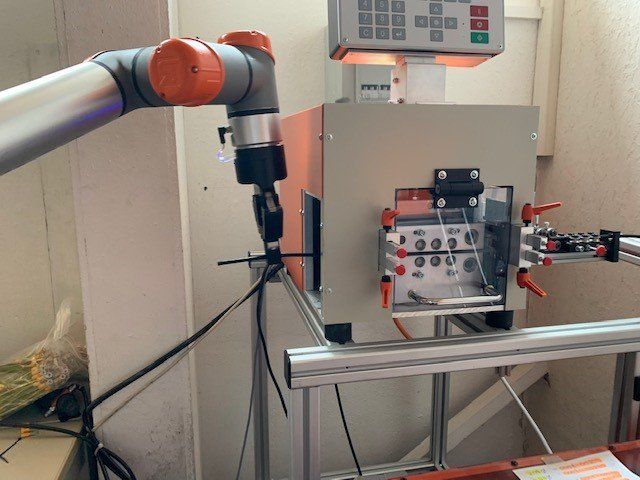

- Our robotic arm in cooperation with the Autocut. Cutting, stripping and attaching a contact on both sides.

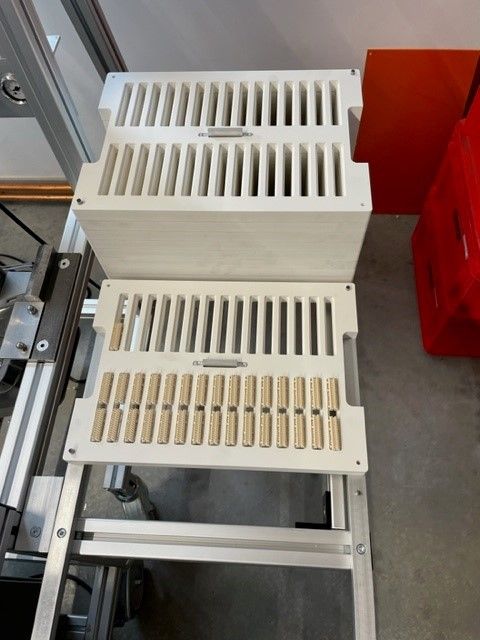

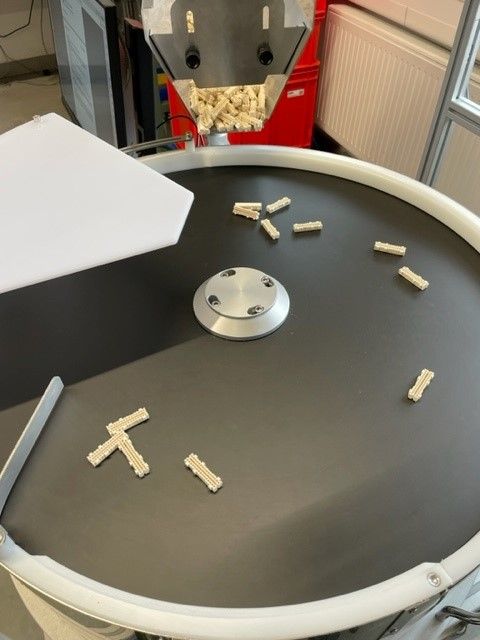

- Robot island including separating, recognizing, processing, pressing and depositing/palletizing
